Place of Origin:
Guangdong, China
Brand Name:
OEM ODM
Certification:
FCC, RoHS, ce
Model Number:
4GE 4WIFI GPON ONU Wifi EPON XPON 4002XR
Contact Us

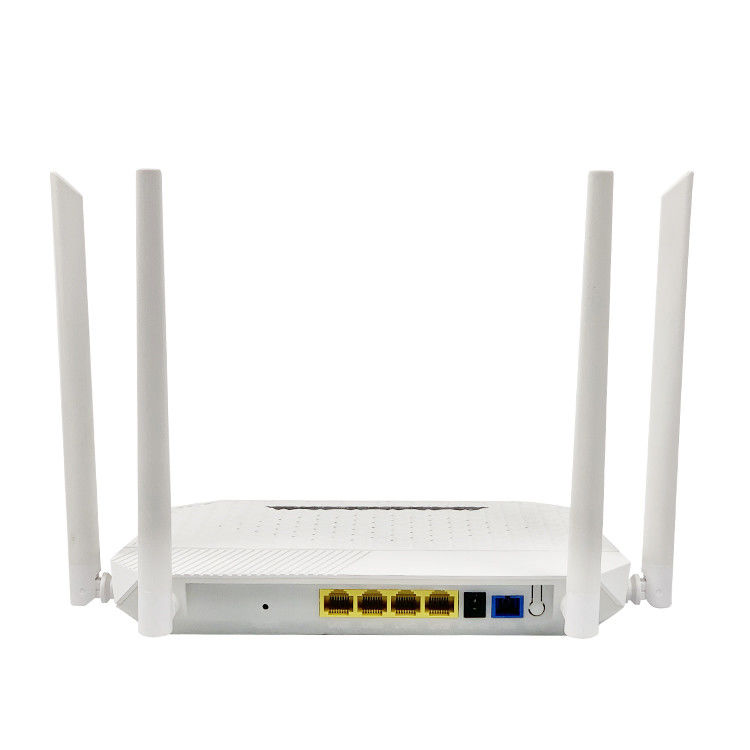

Fiber Optical 4GE+4WIFI GPON Dual Band ONU Wifi EPON XPON AC ONT Optical Network Unit Onu
Description:
designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access .
based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Functional Feature:
| Support EPON/GPON mode and switch mode automatically |
|
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode |
| Support IPv4 and IPv6 Dual mode |
|
Specialized design for system breakdown prevention to maintain stable system |
|
Support TR069 remote configuration and maintenance |
| Support LAN IP and DHCP Server configuration |
| Support Port Mapping and Loop-Detect |
|
Support Firewall function and ACL function |
| Support 2.4G&5.8G WIFI and Multiple SSID |
|
Support Port Mapping and Loop-Detect |
|
Support IGMP Snooping/Proxy multicast feature |
Specification:
| Technical item | Details |
| PON Interface | 1 GPON BoB(Class B+) |
| Receiving sensitivity:≤-27dBm | |
| Transmitting optical power: +0.5~+5dBm | |
| Transmission distance: 20KM | |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/UPC Connector |
| Design Scheme | RTL9607C+RTL8192FR(2.4G)+RTL8812ER(5G) BOB(RTL8290B) |
| Chip Spec | CPU 950MHz,DDR2 128MB |
| Flash | SPI NAND Flash 128MB |
| LAN Interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless | Compliant with IEEE802.11b/g/n,ac |
| 2.4G Operating frequency:2.400-2.4835GHz | |
| 5.8G Operating frequency:5.150-5.825GHz | |
| 2.4G 2*2 MIMO, rate up to 300Mbps | |
| 5.8G 2*2 MIMO ,rate up to 867Mbps | |
| 4 external antennas 5dBi | |
| Support Multiple SSID | |
| LED | 9 LED, For Status of PWR,LOS,PON,LAN1~LAN4,2.4G,5.8G |
| Push-Button | 2 ,For Function of Reset and WPS |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%(non-condensing) | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%(non-condensing) | |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 248mm×158mm×192mm(L×W×H) |
| Net Weight | 0.3Kg |
| Storing Condition | Temperature: -30℃~+60℃ |
Panel lights Introduction
| Pilot Lamp | Status | Description |
| PWR | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN1~LAN4 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
| 2.4G | On | 2.4G WIFI interface up |
| Blink | 2.4G WIFI is sending or/and receiving data (ACT). | |
| Off | 2.4G WIFI interface down | |
| 5.8G | On | 5G WIFI interface up |
| Blink | 5G WIFI is sending or/and receiving data (ACT). | |
| Off | 5G WIFI interface down |
Application
