Place of Origin:
China
Certification:
CE Rohs SGS ISO
Model Number:
SC / APC Zirconia Fiber Optic Attenuator
Contact Us
Fiber Optic Attenuator SC / APC Zirconia Ceramic Singlemode Low Insertion Loss
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
LC/PC, LC/APC, ST/PC, MU/PC, FC/PC, /FC/APC, SC/PC available. Attenuation Value: 3dB, 5dB, 10dB, 15dB, 20dB, 25dB available.
specification:
| Fiber Connector | LC/SC/FC/ST |
| Ferrule Type | Zirconia Ceramic |
| Transfer Mode | Singlemode(9/125)&multimode(50/125 or 62.5/125 and test Wavelength) |
| Connector Gender | Fixed Female to Female |
| Attenuation | 1~25dB |
| Attenuation Accuracy | 1-9dB ±0.5, 10-25dB ±10% |
| Return Loss | >50dB |
| Polarization Dependent Loss | ≤0.2dB |
| Max Optical Input Power | 200mw |
| Operating Temp Range | -40~85°C |
| Humidity | 95%RH |
| Storage Temp Range | -40~85°C |

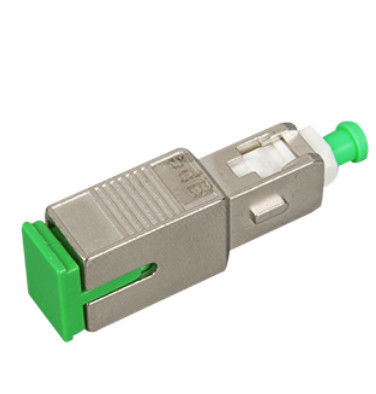

Products Pictures
Applications:
1.Data processing networks
2.Local Area Networks(LANs)
3.Telecommunication networks
4.Active device termination
5.Test equipment / Telecommunication networks
