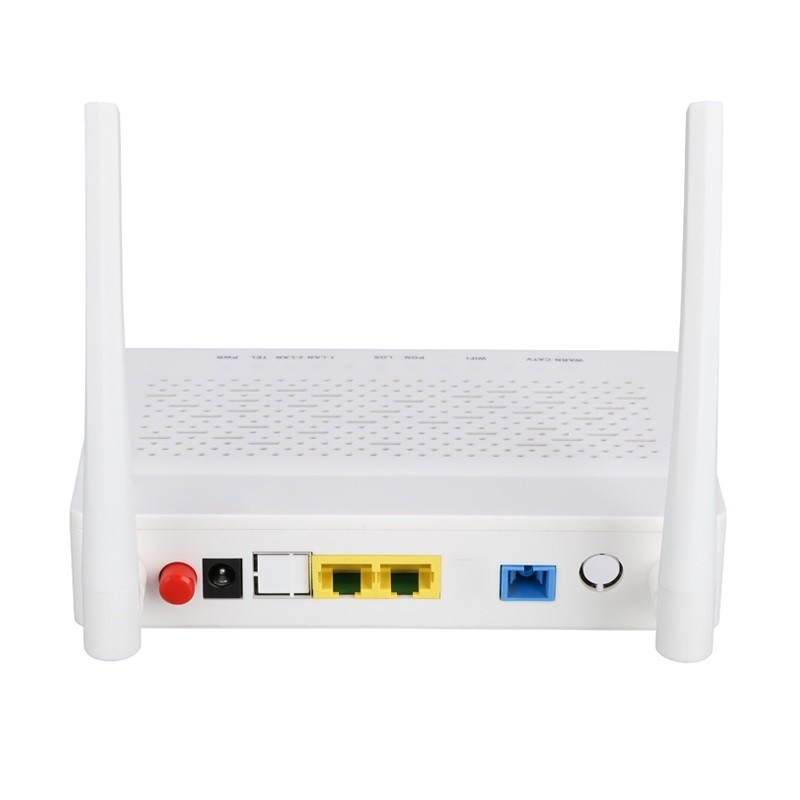

1GE 1FE WIFI XPON ONU Router RJ45 Interface For FTTH FTTB FTTX Network

1GE 1FE WIFI XPON ONU Router RJ45 Interface For FTTH FTTB FTTX Network

1GE 1FE XPON ONU router

RJ45 Interface XPON ONU Router

FTTX Network XPON ONU Router

Place of Origin:

Guangdong, China

Brand Name:

OEM ODM/

Certification:

FCC, RoHS, ce

Model Number:

HR321GER

Contact Us

Request A Quote
Product Details
Product Name:
XPON ONU 1GE 1FE WIFI HR321GER
Power:
≤5W
Dimension:
185*125*32mm(mainframe)
Weight:
0.5Kg(mainframe)
Storage Temperature:
-30~+70℃
Type:
XPON ONU
Chipset:
ZTE, REALTEK Chipset
Connector:
RJ45,SC
Downlink:
Rj45,10/100/1000Mbps,1*10/100/1000Mbps Auto Adaptive
Power Supply:
12V 1A,AU,US,UK
Application:
FTTH FTTB FTTX Network
Color:
White
Wavelength:
Tx 1310nm,Rx1490nm
Certification:
CE /RoHS /ISO 9000
Payment & Shipping Terms
Minimum Order Quantity
100PCS
Price
US$14 to US$18
Packaging Details

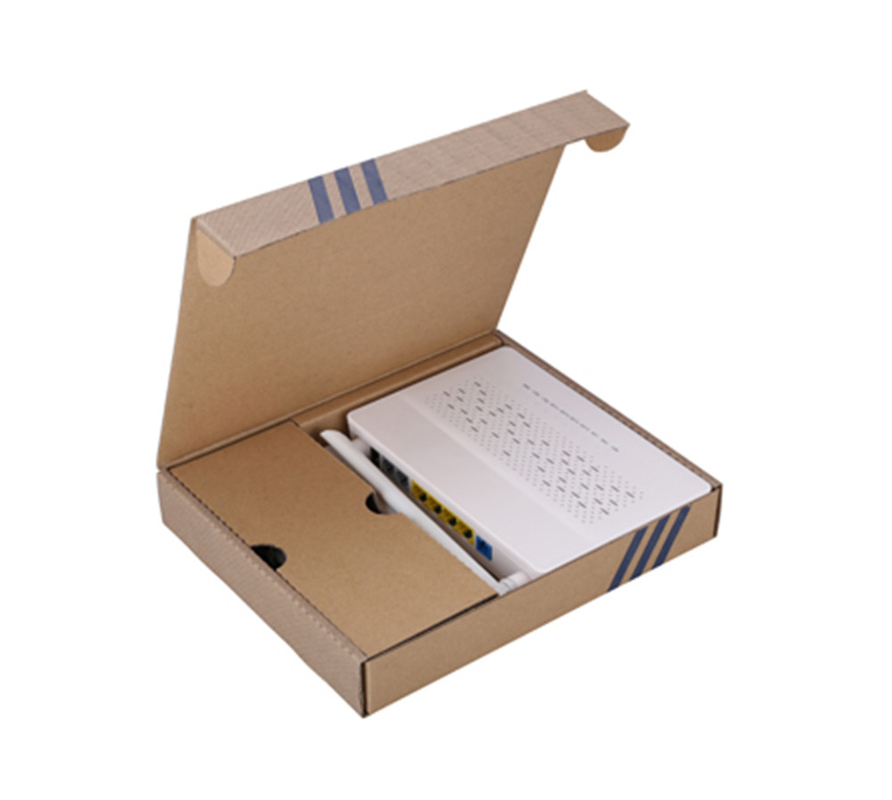

1 pcs in a box , requirements are available
Payment Terms
Western Union, T/T.Paypal
Supply Ability
4000pcs per week
Product Description

Onu Device XPON ONU 1*10/100Mbps And 1*10/100/1000M Auto-Negotiation Ethernet Interface, RJ45 Interface



Description:



ONU product is the terminal equipment of a series of xPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol,onu is based on mature and stable and high cost-effective GPON technology which adopts high-performance xPON Realtek chipset and has high reliability, easy management,flexible configuration,robustness,good quality service guarantee(Qos). ONU adopts MTK MT7603EN scheme for WIFI application that supports IEEE802.11b/g/n standard at the same time,a WEB system provided simplifies the configuration of the ONU and connects to INTERNET conveniently for users. XPON has G / E PON mutual conversion function, which is realized by pure software



WIFI characteristics



1)Tech features description antenna 2T2R Mode 5DBI Gain ,Frequency:2.4G

2)rate 300Mbps PHY rate,WPS

3)encryption methods WFA,WPA,WPA2,WAPI



Ordering information


type Mode NO. Suffix of Mode NO       PACKING
XPON ONU 321GE (ZTE Chipset) Single Band wifi onu 1GE 1FE WIFI 17.2KG/50PCS/Carton
XPON ONU  HR321GER( REALTEK Chipset) Single Band wifi onu 1GE 1FE WIFI  Size:49.5*48*37.5CM









2,Product Features

△ comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol

△ support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate

△ Support bidirectional FEC and RS(255,239) FEC CODEC

△ support 16+1 TCONT and 32+1 GEMPORT

△ Support AES128 decryption function of G.984 standard

△ Support SBA and DBA dynamically broadband allocation

△ Support the PLOAM function of G.984 standard

△ support Dying-Gasp check and report

△ support synchronous Ethernet

△ good interworking with the OLT from different manufacturers,such as HUAWEI,ZTE,Broadcom etc

△ down-link LAN ports: 1*10/100M with auto-negotiation 1*10/100/1000M with auto-negotiation

△ support the rogue ONU alarm function

△ Support multiple VLAN function △ operation mode: HGU option

△ support IEEE802.11b/g/n standard for WIFI

△ double antennas: external box with 5DBi

△ support of 300Mbps PHY rate

△ support multiply SSID

△ Multiple encryption methods :WFA,WPA,WPA2,WAPI

△ Support TR069, NAT, DMZ,DNS features

△Support Bridge, PPPoE, DHCP and Static IP configuration for WAN interface

△Support IP,MAC
