Place of Origin:
CHINA
Brand Name:
OEM ODM
Certification:
CE
Model Number:

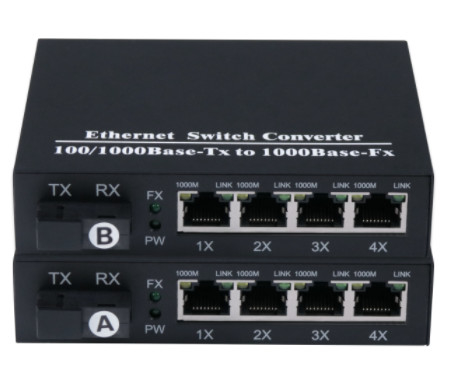

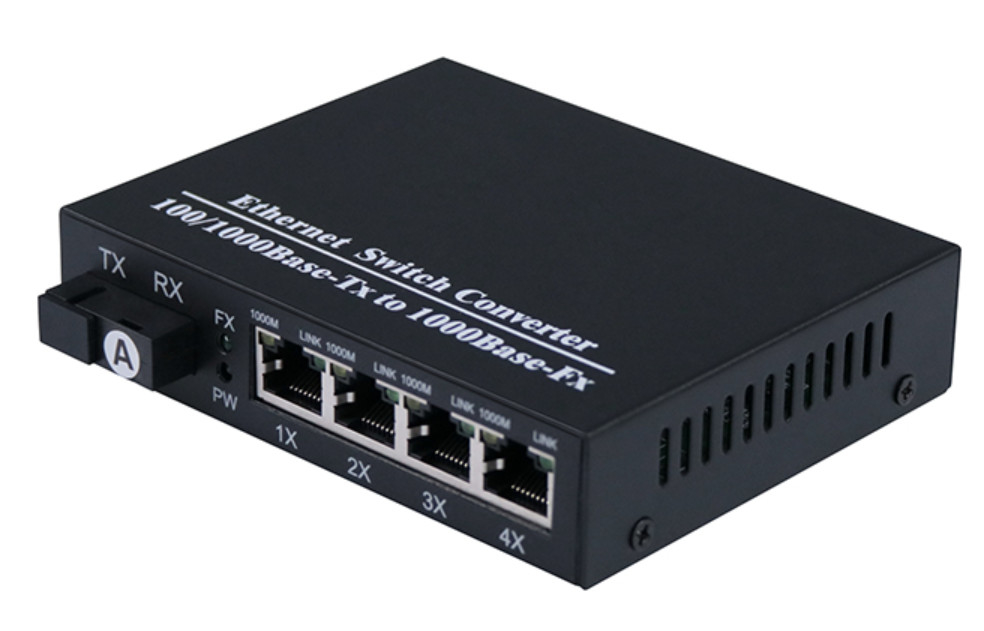

10/100/1000 Gigabit 4 Rj45 Port Media Converter
Contact Us
Description:
| Fixed Port |
4*10/100/1000Base--TX RJ45 port (Data) 1*1000M Optical Fiber Port(optional 1310/1550) |
| Network Protocol |
IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X |
| Port Specification | 100/1000BaseT(X) Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 1.25Gbps |
| Packet Forwarding | 12.96Mpps |
| MAC Address | 2K |
| Buffer | 2.5M |
| Transmission Distance |
10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-100KM Optical Fiber Module |
| Watt | ≤10W; |
| LED Indicator |
PW:Power LED FX:(Optical fiber LED) Port :(Green=10/100M LED+Orange=1000M LED)
|
| Power | External power DC 5V 2A |
| Operating Temperature/Humidity | -15~+65°C;5%~90% RH Non coagulation |
| Storage Temperature/Humidity | -40~+75°C;5%~95% RH Non coagulation |
| Product size/Packing size(L*W*H) |
178mm*98mm*25mm 230mm*125mm*55mm |
| N.W/G.W(kg) | 0.45kg/0.62kg |
| Installation | Desktop (optional wall hanger+machine hanger parts) |
| Lightning Protection level |
3KV 8/20us; IP30 |
| Certificate | CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS;MA;CNAS |
