Place of Origin:
China
Certification:
CE Rohs SGS ISO
Model Number:
0.9mm 50/125 OM4 fiber optic cable
Contact Us

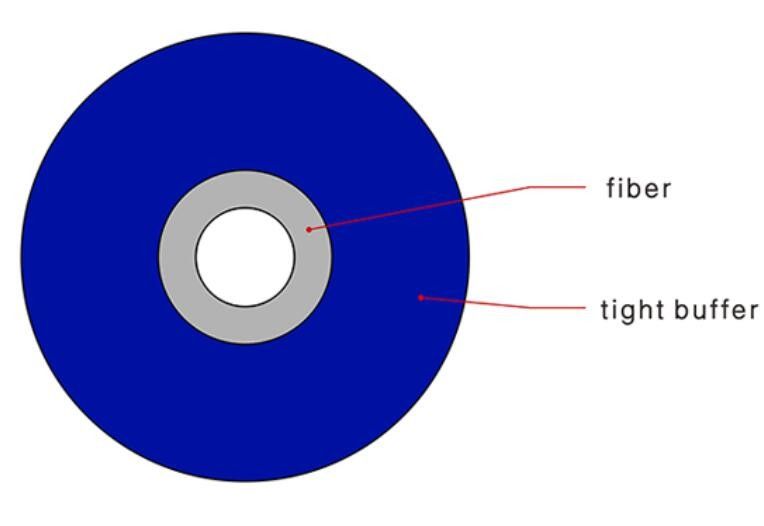

Single Core Fiber Optic Cable 0.9mm Single-Fiber Multimode 50 / 125 OM4 Fiber Optic Cable
Description:
Aramid yarn strength member ensure high tensile strength and long term stability in tranmission.
Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft. Direct splicing between tight buffered cables and need no tie-in box or pigtail.
Specification:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| 1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| 1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| 1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | 850 | ≥500MHZ·km | ≥200MHZ·km | ||
| 1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
