Place of Origin:
China
Brand Name:
HFO
Certification:
CE Rohs SGS ISO
Model Number:
LC - LC Patch Cord
Contact Us

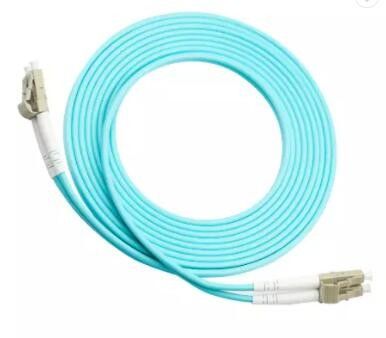

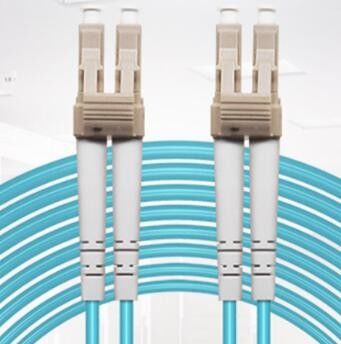

Multimode Fiber Optic Patch Cord 3 Meter LC UPC To LC UPC OM3 Duplex FTTX Application
Description:
The fiber optic patch cord is a length of optical cable with
connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber
cable with only one connector fixed on one end. If both sides of the connector or its end-face are
different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode
and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,
LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
OM3 Multimode jumper 2000mhz .km bandwidth 1G.10G,40G/100G . The maximum transmission
distance is 1km, 300m,100m.
Specification:
| Connector: | LC/UPC-LC/UPC |
| Fiber | MM Duplex OM3 3M |
| Ferrule | ceramic with uniboot |
