Fiber Optic Connection Box 96f/144f Splicing Capacity IP68-IP67 Pole / Wall Mountable
Description:
optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
24F FTTH Access terminal box
Dimension; 385x245x130mm
Protection Level: IP68-IP67
Specification:
|
Max. Fiber Splicing Capacity
|
144F(24f/tray, 6 trays)
|
|
Max. Distribution Capacity
|
1x8 PLC Splitter
|
|
Material
|
PP+GF(box), ABS(trays)
|
|
Color
|
Black
|
|
Dimension
|
385*245*130mm
|
|
Ports No.
|
2 Entry Ports, 8 Drop Cable outlet Ports
|
|
Connector type&quantity
|
Pre-installed SC/APC SC/UPC*8PCS
|
|
Tray Type
|
Integrated with flap-up splice trays
|
|
Minimum Fiber Bend Radius
|
Fiber bend radius control more than 40mm.
|
|
Entry Ports
|
1 mid-span cable entrance(10-16.5mm) for uncut cable
2 mechanical glands for distribution cable (8-16.5mm).
|

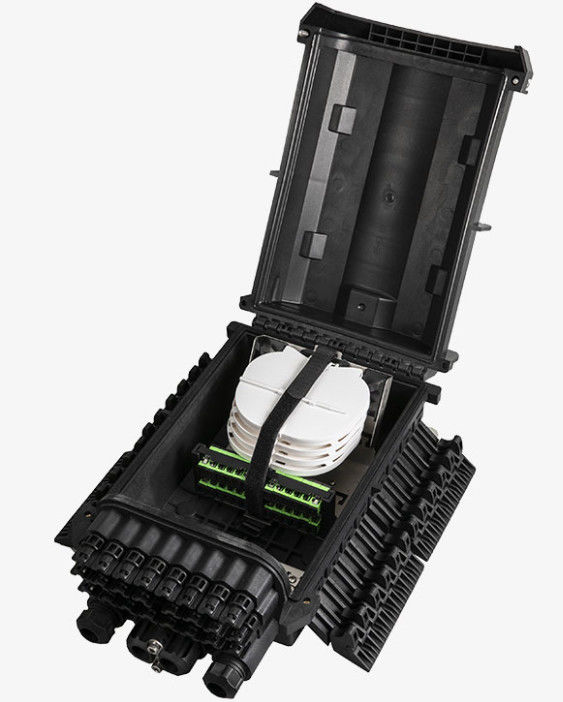

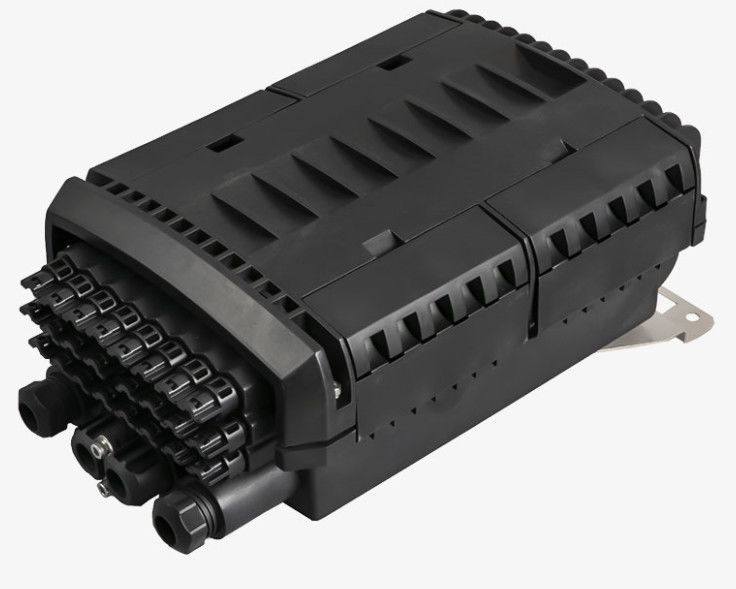

Products Pictures
